EA Evo UV Clarifiers

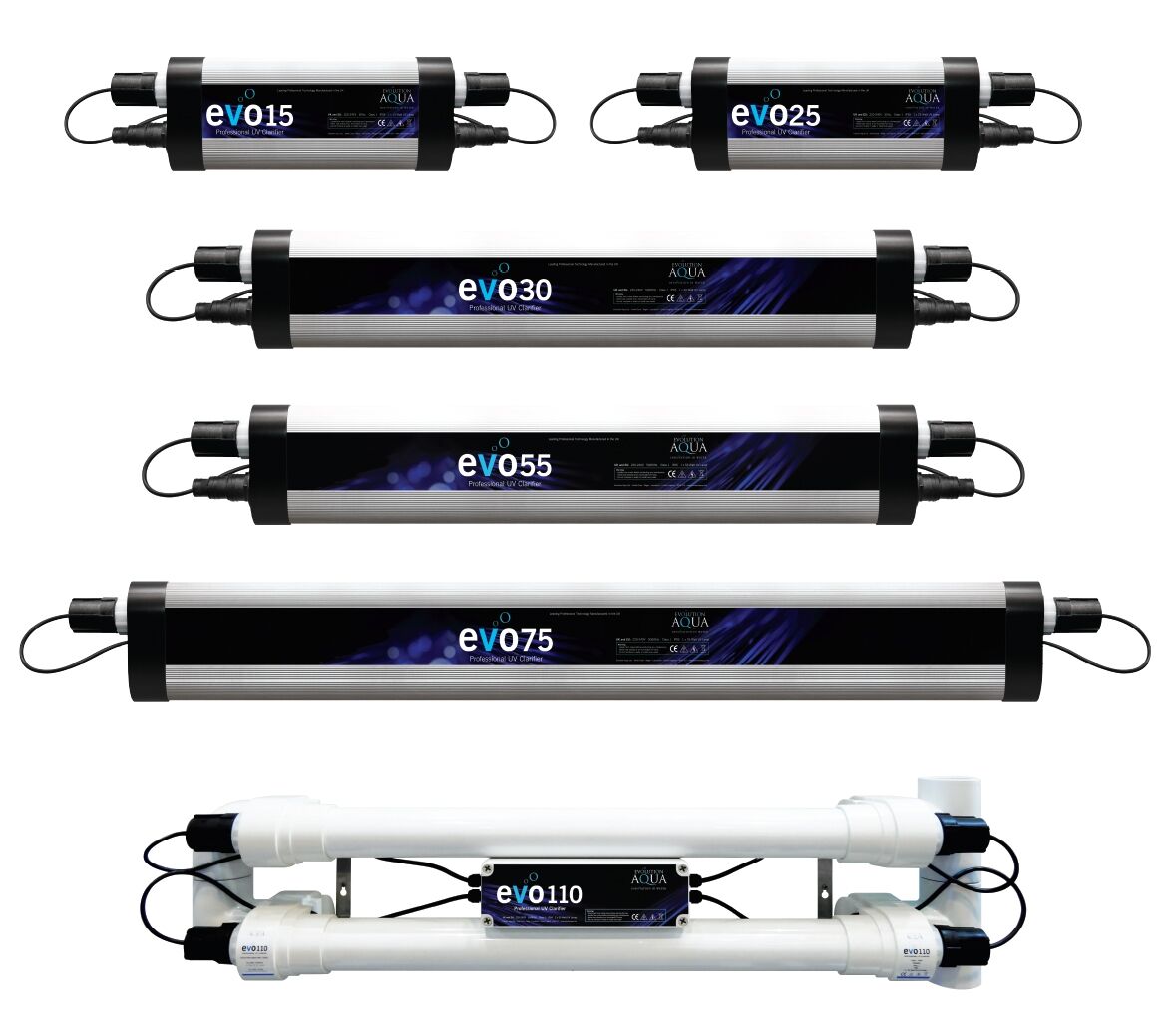

Evolution Aqua’s pond UV clarifiers have been completely re-designed for 2021, to deliver even greater performance and improved serviceability. The range of six evoUV pond clarifiers are made using the very latest technology and design techniques, ensuring there is even water flow through the unit, and optimum ultraviolet light penetration.
One new feature is the ease of the serviceability of the evoUV. Changing bulbs, quartz sleeves or replacing a ballast are quick and simple to do. The evoUV is simple to install, with universal mounting plates allowing you to fix the unit horizontally or vertically, or at any angle you choose
All units come supplied with a 1.5″ threaded hose connector for use with different sized Flexi pipe. However they accept all 1.5″ threaded connectors if you wanted to connect to pressure pipe. Also with the unique design it also allows 2″ pipe connectors to go over the top of the unit if 2″ pipe is preferred.
Overview of Features
- Improves water clarity by eradicating green water
- High output, energy efficient ballast
- Fully serviceable for easy maintenance
- Easy to install
- Available in six models
- 2 year manufacturers guarantee
Installing the evoUV
Pump-Fed Installation: Install evoUV before the filter on the pipework run from the pond
Gravity-Fed Installation: Install evoUV after the filter on the return to pond pipework run.
How the evoUV works
The evoUV range of clarifiers have been designed to clear green water which is caused by single celled green algae and prevent it from returning. They will work alongside many different filtration systems but when used alongside Evolution Aqua’s pond filtration systems, the evoUV will help to deliver crystal clear and healthy pond water.
Your evoUV professional quality UV can be connected to your pond pump and filter with flexible hose using the stepped hosetails provided, or you can install the unit using hard pipe.
Dimensions
evo15 and evo25
The overall dimensions of evo15 and evo25 are identical. They are 540mm (l) x 116mm (w) x 153mm (h) excluding hosetails. The distance between the centre of the inlet and the centre of the outlet is 319mm. The evo15 uses a standard length 15W T8 UV bulb and the evo25 uses a standard 25W T8 UV bulb.
evo30 and evo55
The overall dimensions of evo30 and evo55 are identical. They are 990mm (l) x 85mm (w) x 153mm (h) excluding hosetails. The distance between the centre of the inlet and the centre of the outlet is 768.5mm. The evo30 uses a standard length 30W T8 UV bulb and the evo55 uses a standard 55W T8 UV bulb.
evo75
The overall dimensions of evo75 are 1293mm (l) x 85mm (w) x 153mm (h) excluding hosetails. The distance between the centre of the inlet and the centre of the outlet is 1071.5mm. The evo75 uses a standard length 75W T8 UV bulb.
evo110
The overall dimensions of evo110 are 990mm (l) x 195mm (w) x 280mm (h). The distance between the centre of the inlet and the centre of the outlet is 768.5mm. The evo110 uses two standard length 55W T8 UV bulbs.
