Description
Description
- Mature, professional technology with more than three years of development time

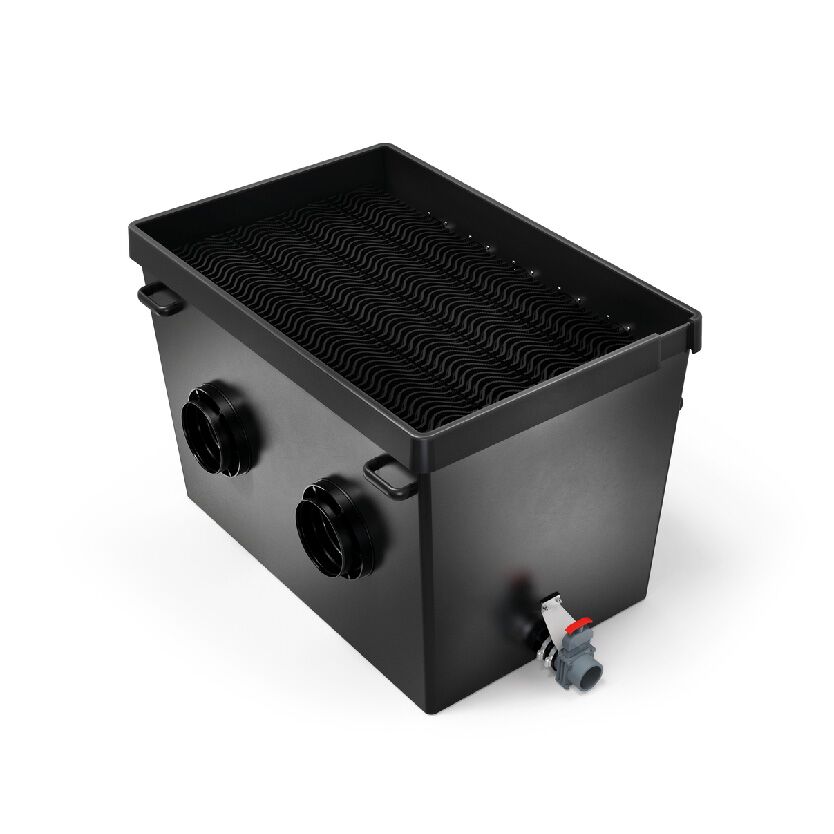

- A fixed bed filter (OASE ClearWave) in the pump-fed discharge module provides the final touch to achieve optimum water clarity
- Highest flexibility due to 5 x DN110 outlets
- Integrated bottom drain with high quality, finely engineered slide valve
- Flexible adaptation of the filter system to individual requirements (individual module)
- Innovative and reliable product »Made in Germany«
- Available from March 2020
TECHNICAL DATA
| Dimensions (L x W x H) | mm | 1330 x 875 x 820 |
|---|---|---|
| Net weight | kg | 101.60 |
| Guarantee (+ request guarantee)Â * | Years | 2 + 1 |
| Temperature display | No | |
| Material | GRP Duroplast/stainless steel | |
| Number of inlets | Units | 2 |
| Inlet connections | mm | 180 |
| Inlet connections | 180 mm | |
| Number of outlets | Units | 5 |
| Outlet connections | DN 110 | |
| Sludge discharge connections | DN 75 | |
| Connection to | AquaOxy 2000, ProfiClear Premium DF-XL pump-fed EGC, ProfiClear Premium XL Moving Bed | |
| Min. flow rate | l/h | 25000 |
| Max. flow rate | l/h | 50000 |
| Installation height above water level | cm | 32.0 |
| Type of use | Pump fed system | |
| Other | Aeration pre-installed |
SPARE PARTS
| Pos. | Product | SKU | Quantity |
|---|---|---|---|
| 1 | ASM cover XL Moving Bed | 71759 | 1 |
| 2 | Holder Clear Wave DM XL pumped | 76369 | 1 |
| 3 | Oval head screw Torx V2A ISO14583 M6x25 | 70425 | 1 |
| 4 | Fiberplate DIN 7603 6 x 12 x 1 mm | 20609 | 1 |
| 5 | Strap grip PA black | 35676 | 1 |
| 6 | Lock nut V2A DIN 985 M6 | 6128 | 1 |
| 7 | Cap nut V2A DIN 1587 M6 | 6117 | 1 |
| 8 | Conn. air stone discharge module XL pump | 77537 | 1 |
| 9 | Air stone ProfiClear 200 x 50 mm | 76060 | 1 |
| 10 | Oval head screw Torx V2A ISO14583 M6x16 | 70424 | 1 |
| 11 | Airstone clamp bio filter | 17216 | 1 |
| 12 | Clear wave drainage module XL pumped | 76368 | 1 |
| 13 | Add. pack air connector ProfiCl. Compact | 42890 | 1 |
| 17 | ASM rubber bushing ID185 to 185 mm | 54964 | 1 |
| 18 | Container XL drain chamber pump-fed | 73436 | 1 |
| 19 | Spare connection set DN110 short | 77507 | 1 |
| 20 | Blanking cap DN 110 | 16387 | 1 |
| 21 | Spare drain DN75 XL | 70636 | 1 |
| 22 | Spare srews set drain DN75 Premium | 18448 | 1 |
| 23 | Oval head screw Torx V2A ISO14585 6.3×32 | 70428 | 1 |
| 24 | Gasket mesh tube 2016 | 43756 | 1 |
| 25 | Outlet 150/2 ProfiClear M 2 – M 5 | 26987 | 2 |
DOWNLOADS
Product instructions DOWNLOAD
